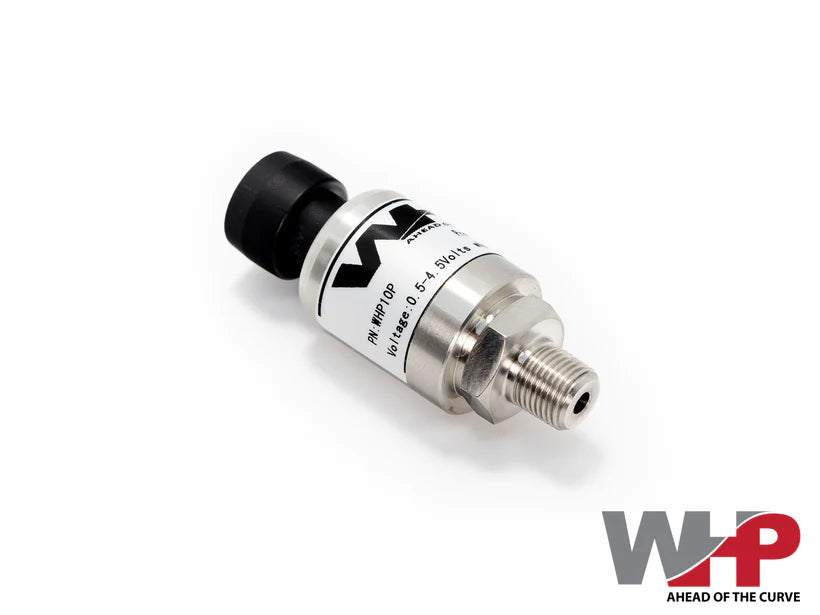

WHP 10 BAR PRESSURE SENSOR, 1/8 NPT

WHP 10 BAR PRESSURE SENSORS are ideally suited for automotive applications such as oil and fuel pressure. 7 bar sensors are generally used for fuel pressure, and 10 bar sensors are recommended for oil pressure as cold oil pressure can easily exceed 7 bar. It is advisable to purchase a sensor with some excess range above your normal operating range.

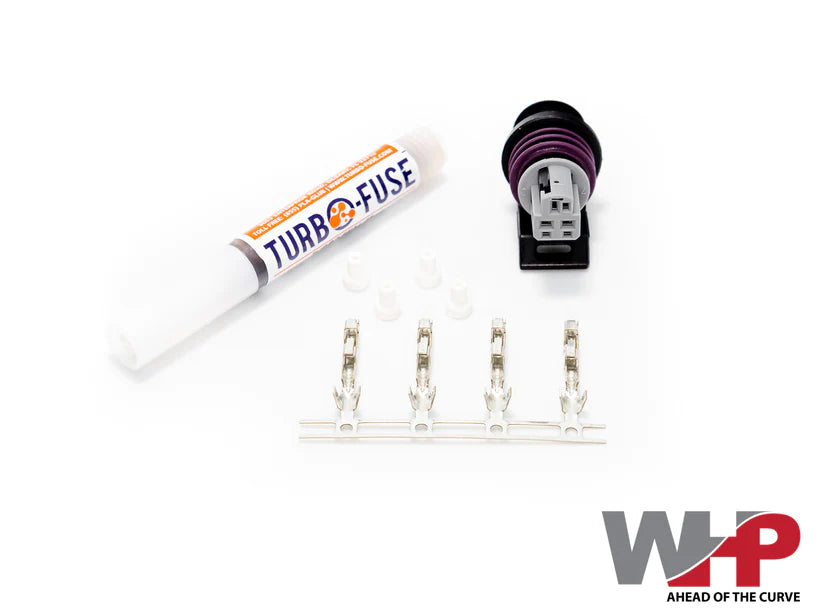

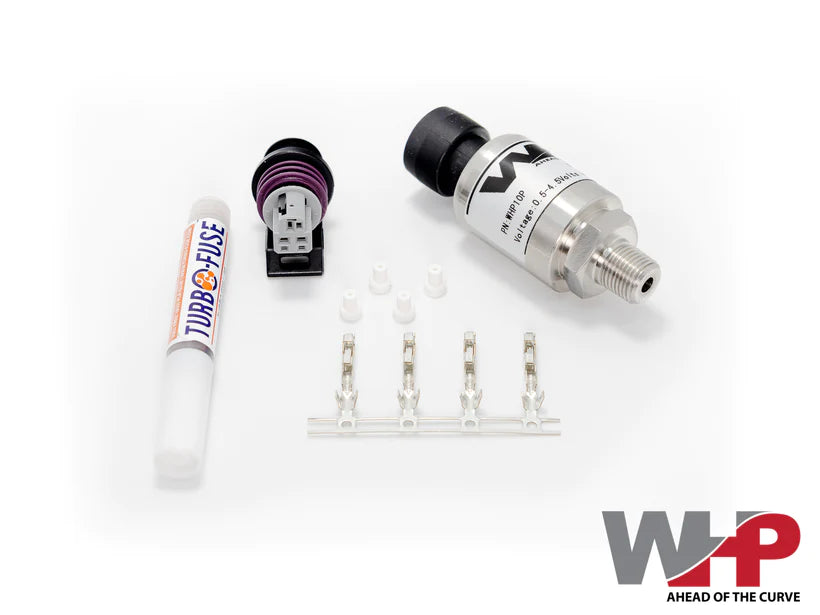

WHP pressure sensors are the perfect companion to any ECU. WHP sensors are built to their specifications in an ISO9001 Certified facility. The latest developments in sensor technology are used to create an extremely compact sensor, easing installation in cramped engine bays and chassis. All sensors are compensated for temperature over a broad range and accurately measure pressure within .5%. Sensor bodies are crafted from 304 Stainless Steel and feature CNC cut threads and wrench flats for reliable sealing and trouble-free installation. Each sensor is packaged with a Delphi connector kit, installation instructions, and a tube of thread sealing compound.

1/8 NPT Threads

Pressure range: 0-10 Bar Gauge Pressure (0-150 PSI)
