SWITCH PROS RCR-FORCE-12 SWITCH PANEL POWER SYSTEM
SWITCH PROS RCR-FORCE-12 SWITCH PANEL POWER SYSTEM
The RCR FORCE-12 includes twelve tactile switches, in a three-row configuration, with the same style of the previous Switch-Pros systems. The twelve circuit, 170 amp power module will control up to seventeen outputs, using a combination of direct and trigger inputs. Five of the circuits can handle inductive loads, and one circuit is a low side driver.
The RCR-FORCE-12 Kit includes everything required for installation, plus the all-new RCR-Touch snap on bezel, which will help the driver select switches with precision even while traveling rough terrain or wearing gloves.
KEY FEATURES:
-12 user-programmable switches
-RCR-TOUCH™ switch cover
-Waterproof, solid state power module
-150amp capacity with 17 outputs
-4 rated @ 35A and 1 rated @ 30A
-(High In-Rush circuits)
-11 rated @ 15A, which can be combined for larger loads
-1 Low Side driver switch, rated @ 2A
-Built-in Bluetooth module
-Program and operate accessories with phone or tablet
-System can be used to start vehicle
-No bulky relay box
-RGB Backlighting with unlimited color options
-Three External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
-Sleep Mode for minimal power consumption
-Color coded output wires
-Daisy Chain up to 3 Switch Panels to One Power Module
-Free app for iOs and Android platforms
-Splash proof switch panel with
-Polycarbonate overlay faceplate
-LED Input Status Indicators for easy troubleshooting
-Battery Voltage Readout on App screen

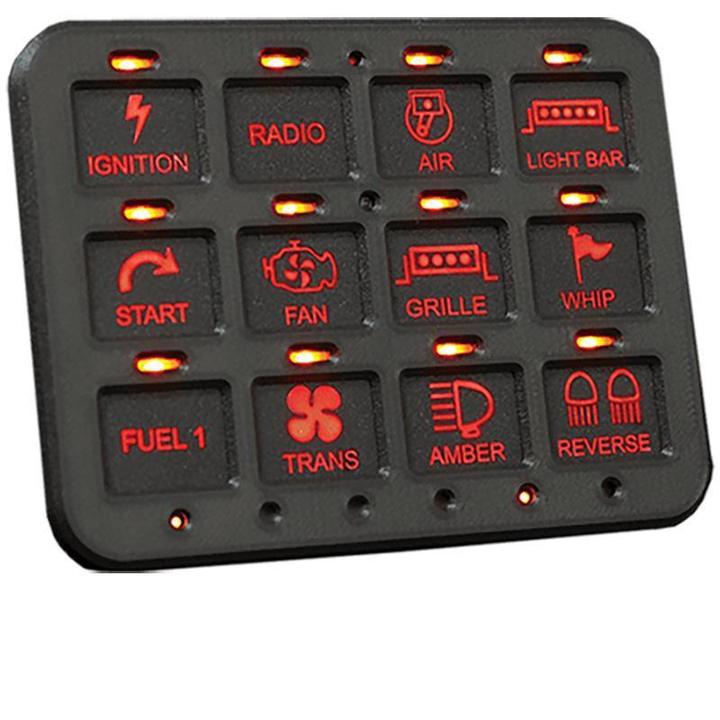

SWITCH PANEL SPECS: -
RCR-Touch™ cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain
-Switch Panel enclosure measures 4” L x 3” W x .375” H
-Splash proof with Polycarbonate overlay faceplate Pre-machined for factory- look installation
-RGB backlighting
-Orange LED switch indicators
-6 Programmable LED Status indicators
POWER MODULE SPECS:
-17 Outputs: 4 rated @ 35A, 1 rated @ 30A, 11 rated @15A, 1 Low Side rated @ 2A 150A maximum rating
-7”L x 3.5”W x .5”H (excluding connectors)
-Waterproof and Solid State
-Underhood rated 125° to -40°C
-LED Ignition Input Status Indicator

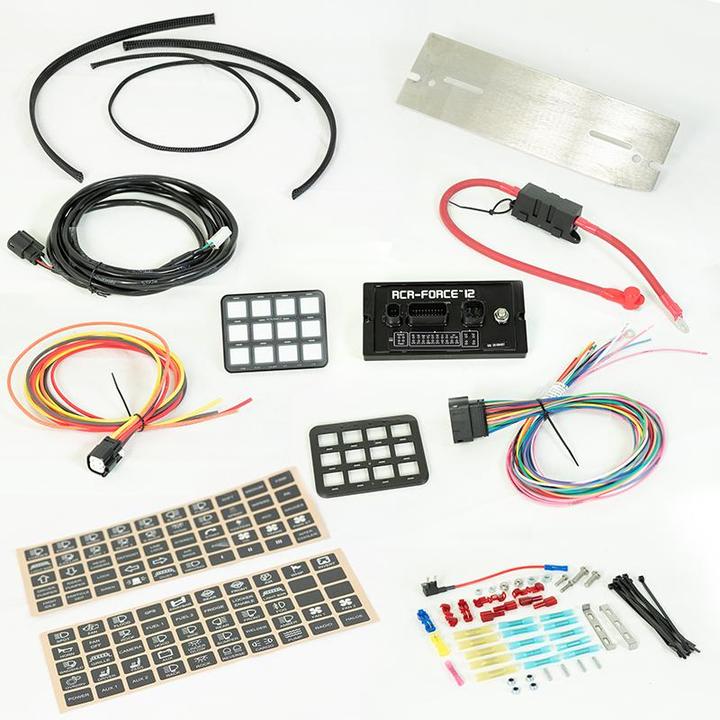

KIT INCLUDES:
-Switch Pros RCR-Force-12 Panel
-Switch Pros RCR-Force-12 Power Module
-RCR-TOUCH™ switch cover
-11’ of Communication Cable between Switch Panel and Power Module
-Power Cable with 150A inline Circuit protection

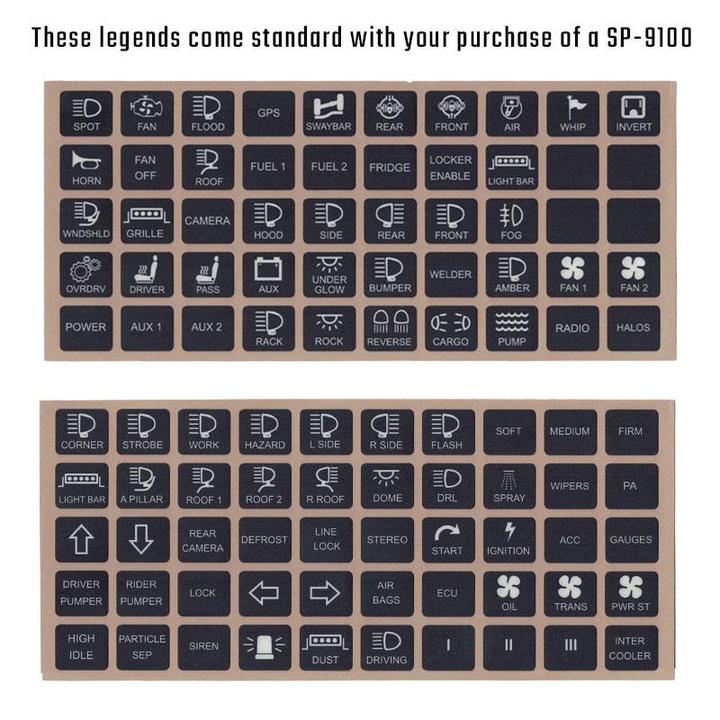

-100 User Selectable Legends included (Horizontal orientation)
-Installation brackets and hardware Color Coded Output wires
-Wire harness with waterproof, sealed automotive grade connectors
SWITCH PROGRAMABLE FEATURES:
-Preset Dimming function WITH MEMORY (100% to 10% brightness)
-Master Mode, with ability to turn multiple outputs On AND Off with one touch
-Every Master Switch can control up to 4 other switch outputs On-On-Off
-logic Touch Panel lockout On/Off or Momentary Ignition or Battery Input
-Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
-Automatic Power-Up upon vehicle start up
-Safety Lockout for specific switches
-Time Delay off
