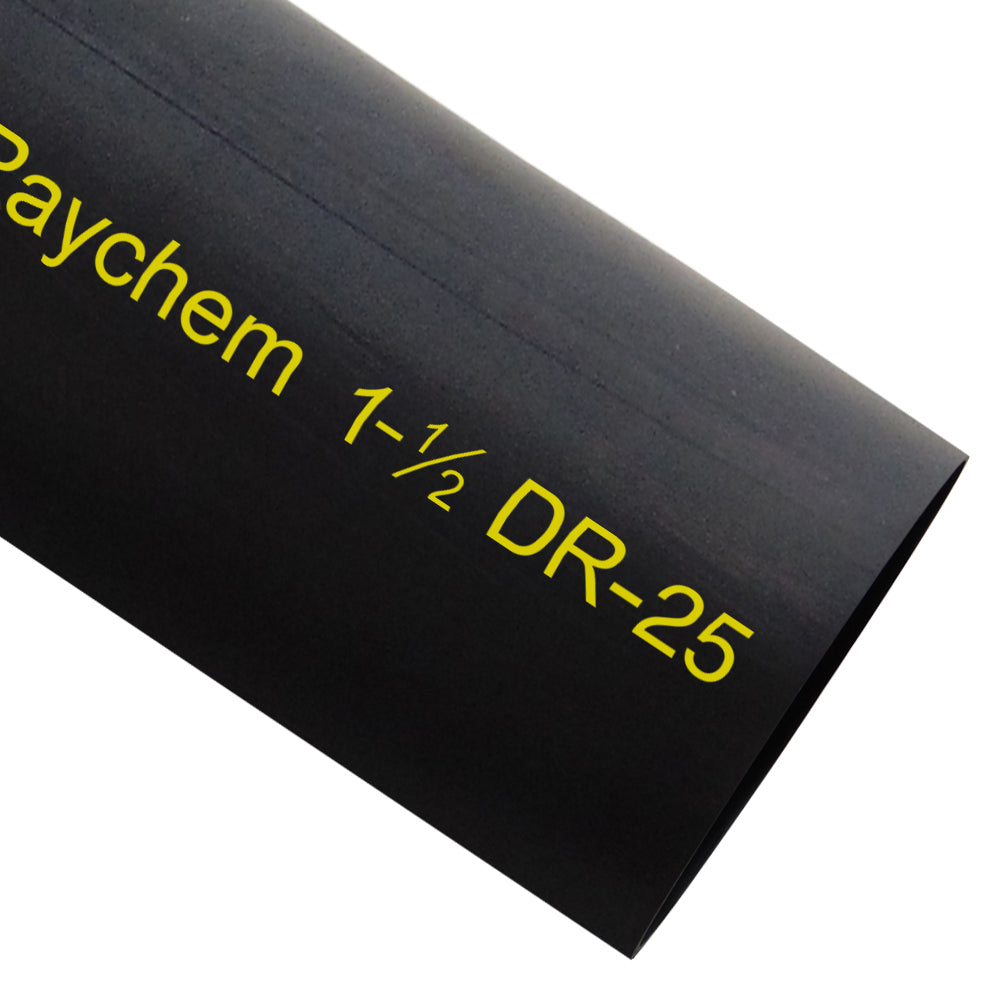

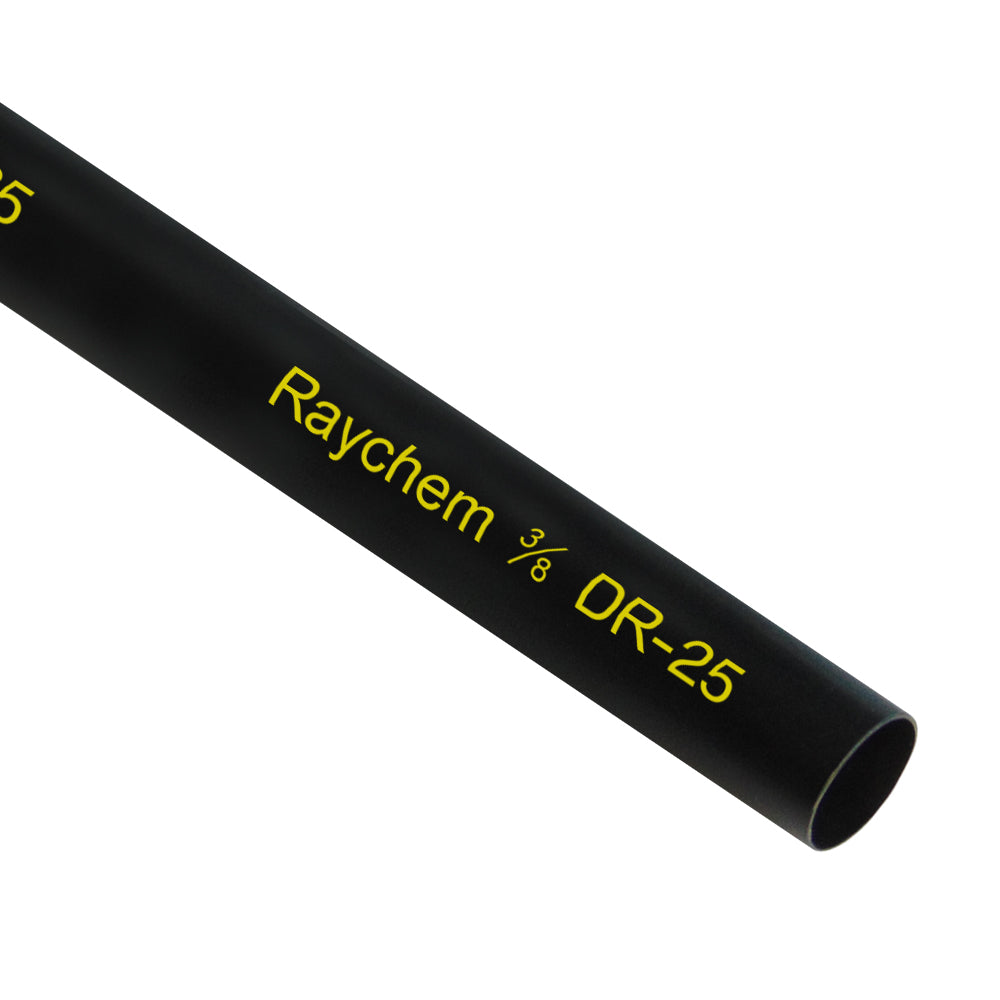

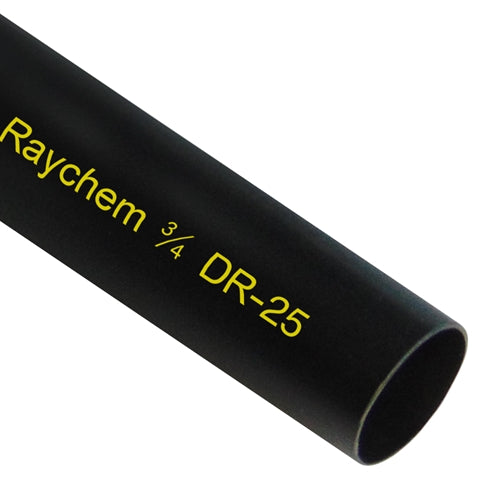

Raychem/TE DR-25 Heat Shrinkable Tubing

Heat-Shrinkable, Flexible, Chemical and Abrasion / Diesel Resistant Shrink

Specially formulated for optimum high-temperature fluid resistance and long-term heat resistance. Resistant to aviation and diesel fuels, hydraulic fluids, and lubricating oils. Particularly suitable as a jacketing material for military ground vehicle cables and harnesses. It is also ideally suited for the demands of motorsport cable harnesses. When used in conjunction with System 25 heat-shrinkable molded shapes and RT125 High-Performance adhesive, these products provide a complete cable harness system.

• Shrink Ratio 2:1
• Flame-Retardant
• Operating Temp Range: -75-150ºC
• Recovery Temp: 175ºC
• U.S. Version Print Color: Yellow
• Glue Lined: No
• Use With Raychem Heatshrink Boots
• DR-25 tubing is stocked up to 1 1/2" other sizes available by special order
• Sold By The Foot
