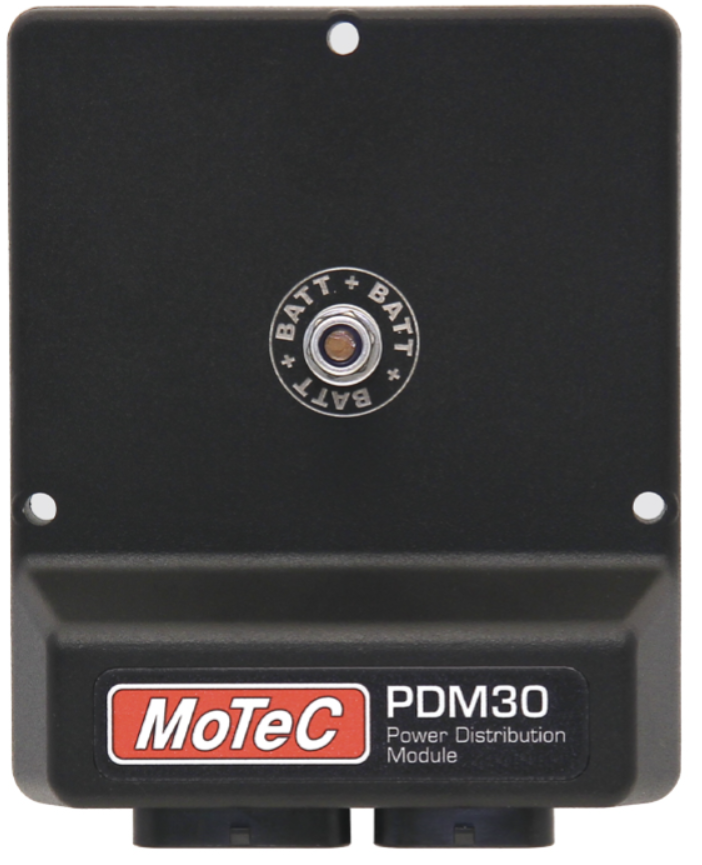

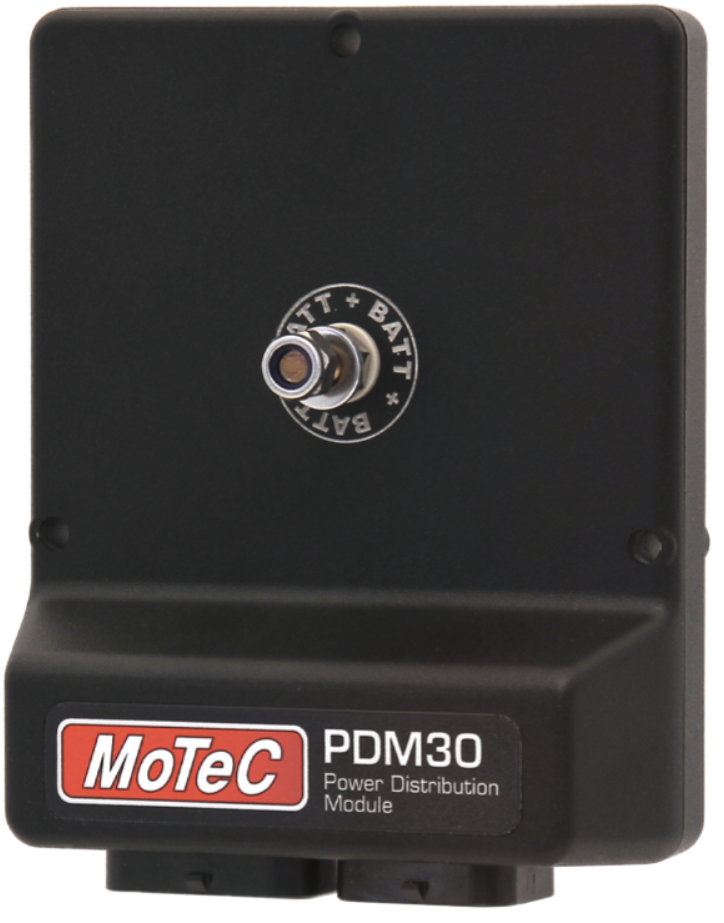

MOTEC PDM 30

MoTeC’s new 30 output Power Distribution Module (PDM30) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.

Outputs:

• 8 x 20 A outputs—20 A continuous, 115 A transient (typical)
• 22 x 8 A outputs—8 A continuous, 60 A transient (typical)

Inputs:

• 16 x Switch inputs

Communications:

• 1 x CAN

Diagnostic Information:

• Output current and voltages
• Input voltages
• Error status

Case size:

• 108 x 128 x 39 mm

Weight:

• 270 grams

Connectors:

• 1 x 34 pin waterproof connector
• 1 x 26 pin waterproof connector
• 1 x M6 stud
• CONNECTORS NOT INCLUDED
