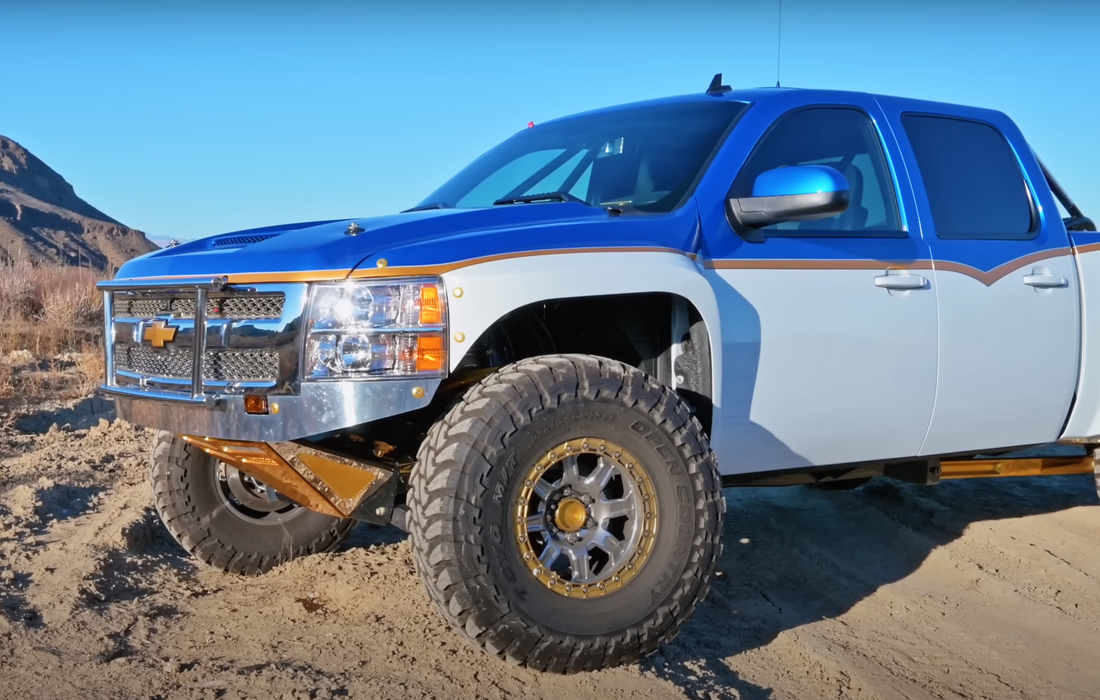

This is Chevrolet Crew Cab We wired for KIBBETECH. This Is a Long Travelled, Short Course Linked Fully Built Luxury Prerunner!
This truck features a 427ci LS7 Built by MORUZZI RACE MOTORS and a 4l80e Built by MAXIMUM OFFROAD TRANSMISSIONS. The engine and transmission are controlled by a Holley Terminator XMAX ECU. The vehicle is powered and controlled by (2) Motec PDM 30 PDMS and a 15 button and 8 button CAN Keypad. This truck also features a Rockford Fosgate PMX-3 Head Unit with a JL Audio VXi 1000/5i 5 Channel Internal DSP amp that powers (4) JL Audio C3-650 6.5" Component speakers.
We were asked to build and design a front chassis, rear chassis, center chassis, cab, engine, and dash harnesses for this truck. All the wiring is constructed of 14-22awg M22759/32 Tefzel Wire that is concentrically twisted in multiple layers. Everything is then wrapped in Raychem DR-25 Heat Shrink then booted and sealed. We followed Mil Spec Motorsport standards when constructing the harnesses for this vehicle. This truck turned out very badass and it was Very fun to be apart of!
